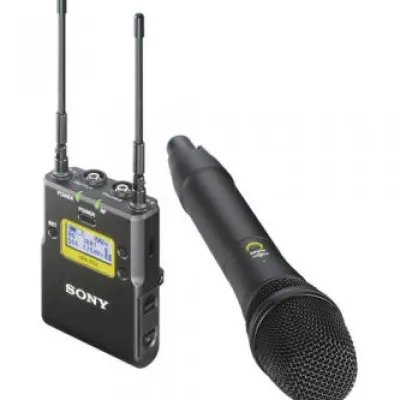

Discount Sony UWP-D12 Integrated Digital Wireless Handheld Microphone ENG System  (UHF Channels 30/36 and 38/41: 566 to 608 and 614 to 638 MHz)

The 566 to 608 and 614 to 638 MHz version of the   Sony UWP-D12 Integrated Digital Wireless Handheld Microphone ENG System    features all-metal construction, easy to read LCD displays, a wide switching RF bandwidth, USB power and charging, automatic channel scanning, infrared synchronization between the transmitter and receiver, a true diversity receiver, a headphone output on the receiver, output gain control on the receiver for optimizing input level to a camera, and digital companding circuitry to improve the transient response of received audio. The package is suitable for a wide range of wireless applications such as ENG, talk shows, lectures, and more.

The system is referred to as integrated digital because the transmitter and receiver utilize DSP for digital companding and expanding of the transmission signal. Performing the companding and expanding processes in the digital domain improves the accuracy and transient response of the received audio.

The camera-mountable receiver features true-diversity technology which stabilizes reception and minimizes RF interference by using dual antenna input/reception circuits and selecting the strongest incoming signal. The angle of the antennas is also adjustable to improve reception when the receiver is mounted on top of a camera or camcorder. The system utilizes UHF Phase Locked Loop (PLL) synthesis to lock the phase of the transmission frequency between transmitter and receiver. The receiver can automatically search for an available transmission frequency and link the desired frequency to the transmitter via infrared connection.

A stereo mini-jack output with monitor volume control is featured and both stereo mini and stereo XLR cables are provided. The unit also includes a headphone monitor output for use with cameras and camcorders that don”t have a monitor output. An LCD display provides channel and frequency information, battery life, RF-input level, audio-output status and accumulated operating time.

For power, the receiver operates on two AA batteries for up to 6 hours, or on 5 VDC of USB power over a USB micro B cable. The USB connection can also be used to recharge Ni-MH rechargeable batteries within the battery cartridge. The receiver”s compact design and included shoe-mount adapter allows easy mounting to most camcorders and interchangeable lens system cameras.

The handheld microphone transmitter features a unidirectional capsule, a built-in windscreen, and a robust metal construction.

The capsule is removable and can be interchanged with over 40 compatible microphone capsules from various manufacturers, such as the industry standard Shure SM58. The transmitter can operate for up to 8 hours on two AA-size alkaline batteries, can be powered or recharged via USB micro B connections, and features a comprehensive LCD display.

The system comes with a screw adapter, a belt clip, a shoe-mount adapter, a 3-pin mini to mini stereo cable, and a 3-pin mini to XLR cable. Optional accessories such as a microphone holder, battery case, and soft case for the receiver are sold separately.

yGAZzRLwP4

Sony UWP-D12 Integrated Digital Wireless Handheld Microphone ENG System  (UHF Channels 30/36 and 38/41: 566 to 608 and 614 to 638 MHz)


• UTX-M03 Integrated Digital Handheld Wireless Microphone Transmitter (UHF Channels 30/36 and 38/41: 566 to 608 and 614 to 638 MHz)



• URXP03 Integrated Digital Portable Wireless Receiver (UHF Channels 30/36 and 38/41: 566 to 608 and 614 to 638 MHz)



• Microphone Holder



• Screw Adapter



• Belt Clip



• Shoe-Mount Adapter (Receiver)



• 1/8″ (3.5mm) Mini to Mini Output Cable



• 1/8″ (3.5mm) Mini to XLR Output Cable
