Hot Atomos Shogun Studio 4K Monitor / Recorder 12G-SDI, HDMI

The  Atomos Shogun Studio 4K Monitor / Recorder  combines two color-calibrated 1920 x 1200 resolution displays with 4K video recording and edit-ready codecs in a 3RU chassis with removable rack mount ears. This configuration is well suited for live event, studio, and on-set DIT work. The Shogun Studio utilizes 4K HDMI and 12G-SDI inputs to record clean output signals at resolutions up to UHD 4K (3840 x 2160) at 23.98, 24, 25, 29.97, and 30p, as well as Full HD (1920 x 1080) video up to 120 fps when used with capable cameras. The Shogun records 10-bit, 4:2:2 UHD 4K and HD video to Apple ProRes HQ, 422, or LT formats. It can also record HD video using Avid’s DNxHD format and UHD 4K video using Avid’s DNxHR. Video is recorded to single or raided 2.5″ HDD and SDDs for fast and reliable write speeds.

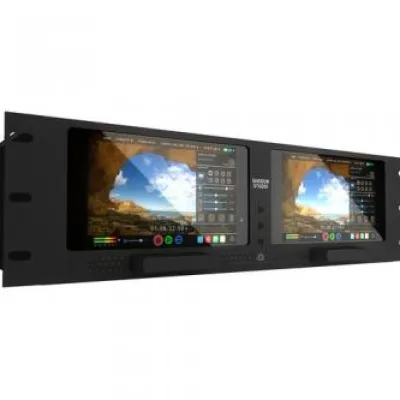

As a monitor, the Shogun features a 7″ IPS capacitive touchscreen display with resolution of 1920 x 1200. It is Rec. 709 color calibrated and supports multi-frequency operation (48/50/60 Hz) for monitoring of a variety of input frame rates. An SDI loop output is available for passing the signal to an additional monitor. As an added convenience, 4K signals can be internally down-converted and output in 1080p at the same frame rate.

The Shogun Studio supports Tally function, custom 3D LUTs, Genlock In for multi-camera syncing. There are also a variety of onscreen tools to help you set up your shots, including a full waveform monitor, RGB parade display, vectorscope, focus peaking, and framing, focus, and exposure assisting tools. With two slots, one for each monitor, for a master recording caddy, you can simultaneously record the signal being fed to each monitor.

1 Year Worldwide Warranty

Yrv7naJnb6

Atomos Shogun Studio 4K Monitor / Recorder 12G-SDI, HDMI

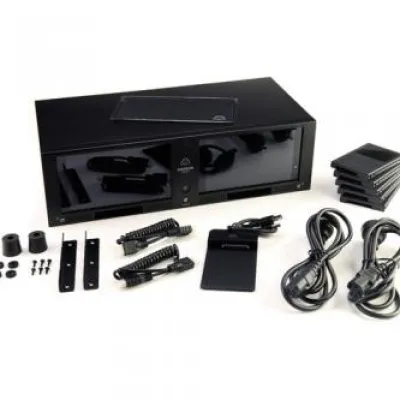

• IEC C14 AC Cable



• 5 x Master Caddies



• Docking Station



• Detachable Rack Ears



• Limited 1-Year Warranty
