New CZI Tethered Power System for DJI MATRICE M300/M350

TK300 Tethered system for DJI M300 Drone, it is the world       s first portable tethered power station, weight only 28lb, backpackable, easy to use, quick deployment, single-person can be carried on the back, protection class IP54. Intelligent function monitoring and display.

The DJI M300 drone tethered system can converts single-phase or three-phase AC power into DC high voltage, and transmits it to the onboard power supply through a high-performance nickel alloy power supply cable to continuously supply power to the drone. Combined with the use of backup batteries, it can achieve a max of 24 hours of continuous operation on the basis of ensuring a safe flight.

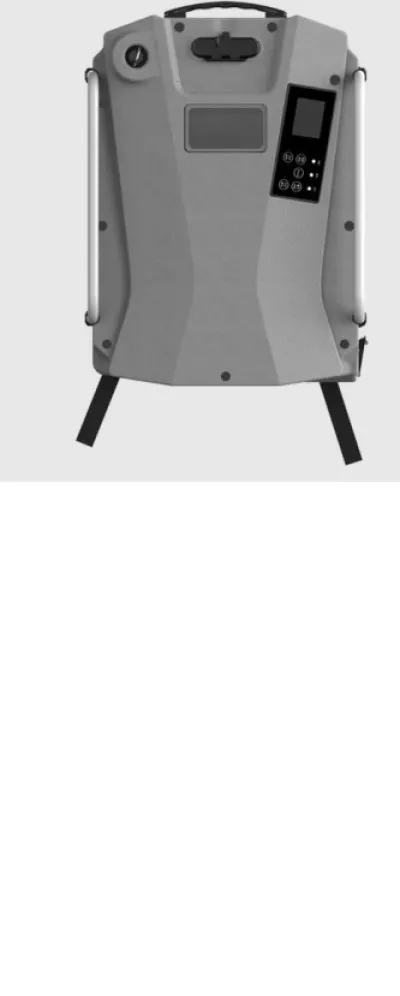

The TK300 tethered system includes two parts, the on-board power supply which installs on the drone, and the manual-automatic integrated ground power station. Among them, the manual and automatic winding machines integrate ground power supply, high-performance power supply cables, and automatic winch devices. The highly integrated ground power supply system not only provides portability, but also ensures that the automatic winding functions of 100-meter cables can be quickly executed, and can also reduce the impact and bending of the cable, which is a protective cable.

Features:


• Tethered system compatible with DJI Matrice 300 RTK



• Portable, Backpackable, only 13Kg,



• IP54 protection class,



• easy to use, quick deployment.



• manual-automatic integrated winch system



• Voltage and current overload protection



• Intelligent real-time monitoring of system working status.



• Safe and efficient.
